FKV

CIRKULÆR FLERKONVENTIL

En fleksibel flerkonventil, der kan bruges i forskellige områder

Til mellemstore og store lofthøjder
Opvarmning og køling
Til åben montering og systemlofter
Til manuel eller termisk regulering af strømningsmønster
Høj induktion

Anvendelse

FKV er en cirkulær flerkonventil til store luftmængder. Ventilen har justerbare kegler, så man kan indstille mellem vertikal og horisontal lufttilførsel. Den anbefalede installationshøjde er mellem 2,7 og 6 m.

UdFØRELSE

FKV er en cirkulær flerkonventil med justerbare kegler. Keglerne kan justeres via en centerskrue for at ændre spredningsmønsteret. FKV kan leveres med manuel eller termisk regulering. Med manuel styring justeres fordelingsmønsteret ved at dreje konusserne op eller ned. Keglerne skal vende op mod ventilen i tilfælde af høj luft, og ned fra ventilen ved lav luft. Den termiske regulering opnås ved, at indblæsningsluftens temperatur påvirker varmefjederen, som derefter justerer ventilens spredningsmønster. I tilfælde af overtemperatur vil luftstrålen blive justeret nedad for at sikre lufttilførsel til opholdszonen.

Beskrivelse

FKV kabinettet er produceret i aluminium. Aksler, skruer, kegler og stivere er lavet af stål. Ventilen er lakeret i RAL 9003, glans 30.

Montering

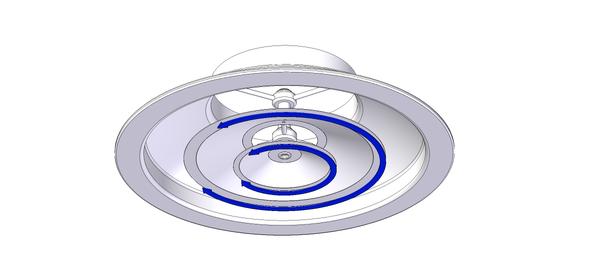

FKV monteres med skruer fra spiroen og ind i ventilhalsen. Ved hjælp af den termiske fjeder tilpasser armaturet sig indblæsningsluftens temperatur. Keglerne går op ved en højere temperatur, og ned ved en lavere temperatur. Keglerne justeres nemt og enkelt ved hjælp af en centerskrue. Ved lav lufttemperatur skal keglerne skrues udad. Ved høj lufttemperatur skal keglerne skrues indad.

Tekniske informationer

Downloads

Produktoplysninger

Websideprint FKV
Datablad FKV

Technical leaflet 1,9 MB pdf

Certifikater

FKV - Byggevaredeklaration

150 KB pdf
Statement / Egenerklæring

Statement 830 KB pdf
